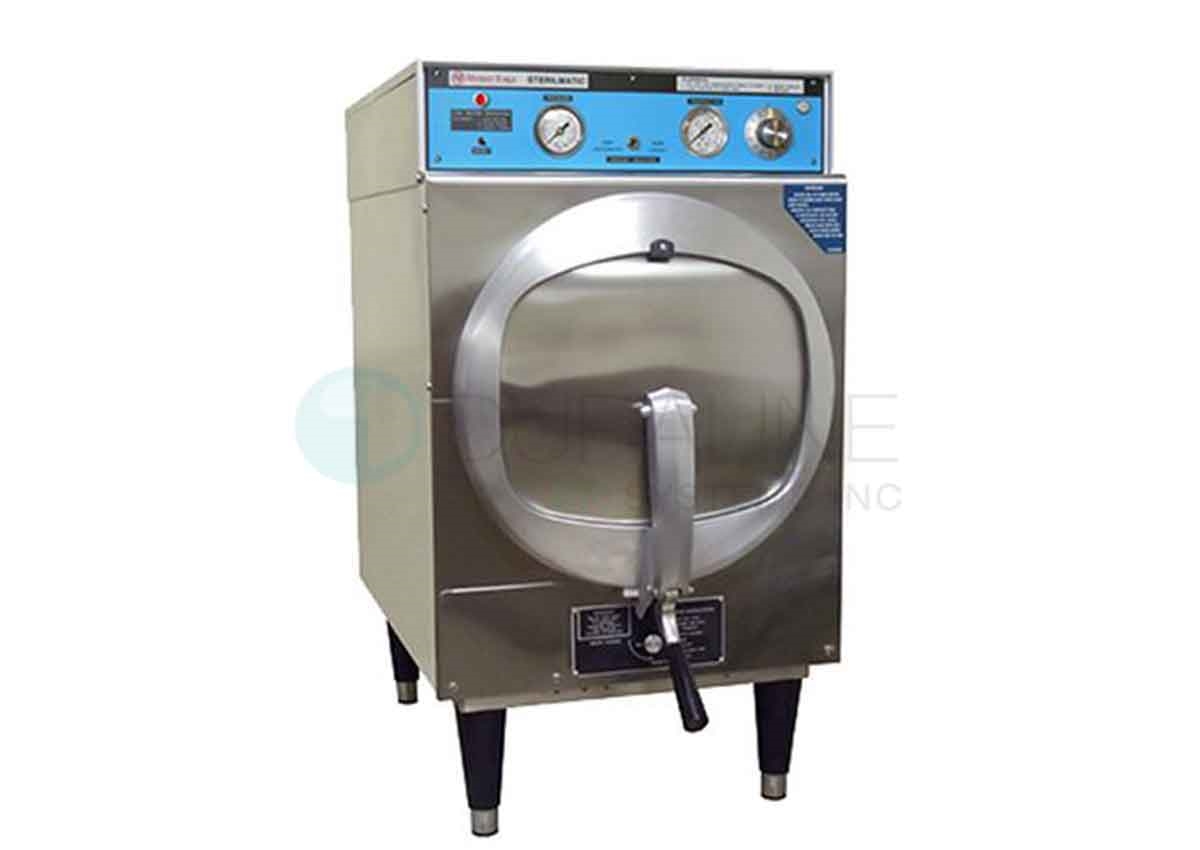

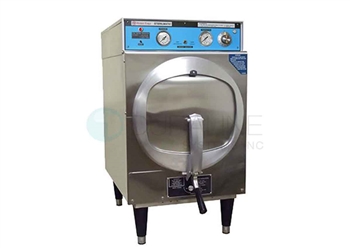

New Market Forge STM-E Analog Sterilmatic Steam Sterilizer Autoclave in stock with 1 year parts and labor warranty
Market Forge OEM # 95-2678
The Largest Capacity in the most compact space! Small on the outside, the Sterilmatic has as much inside capacity as many large, more costly conventional sterilizers and up to five times the capacity of smaller table top units.
The sterilizing cylinder is constructed according to the standards set by the American Society of Mechanical Engineers (A.S.M.E.) and is registered with the National Board. The cylinder is made of 3/16" (4.8mm) thick welded aluminum, which ensures durability and strength.
Sterilizer exterior is made of polished stainless steel. Interior dimensions of 16” (406mm) in diameter and 26” (660mm) long with a cubic content of 5,220 cubic inches (85 liters) and will have a door opening of 13-1/2” (343mm) wide and 11” (279mm) high.
Economical, reliable and simple to operate, the versatile Sterilmatics provides the highest standards of sterilizing performance in a number of facilities, such as, Laboratories, Veterinary Clinics, Food Processing Plants, Wineries, Fisheries, Dairy Processing Plants, and more.
Sterilize glass beakers, pipettes, test tubes and flasks. Metal and plastic instruments, syringes, needles, brushes, rubber gloves, catheters, rubber tubing, dressings, linens, petri dishes and more.
Standard Features:
- Automatic temperature controls
- Temperature up to 250°F (121°C)
- Thermostatic steam trap
- Thermometer range 180°-300°F (82°-149°C)
- 0-30 lb. steam gauge
- 0-60 minute timer
- Low water cut-off, signal light, and safety valve
- Flat perforated steam baffle
- Removable pan supports

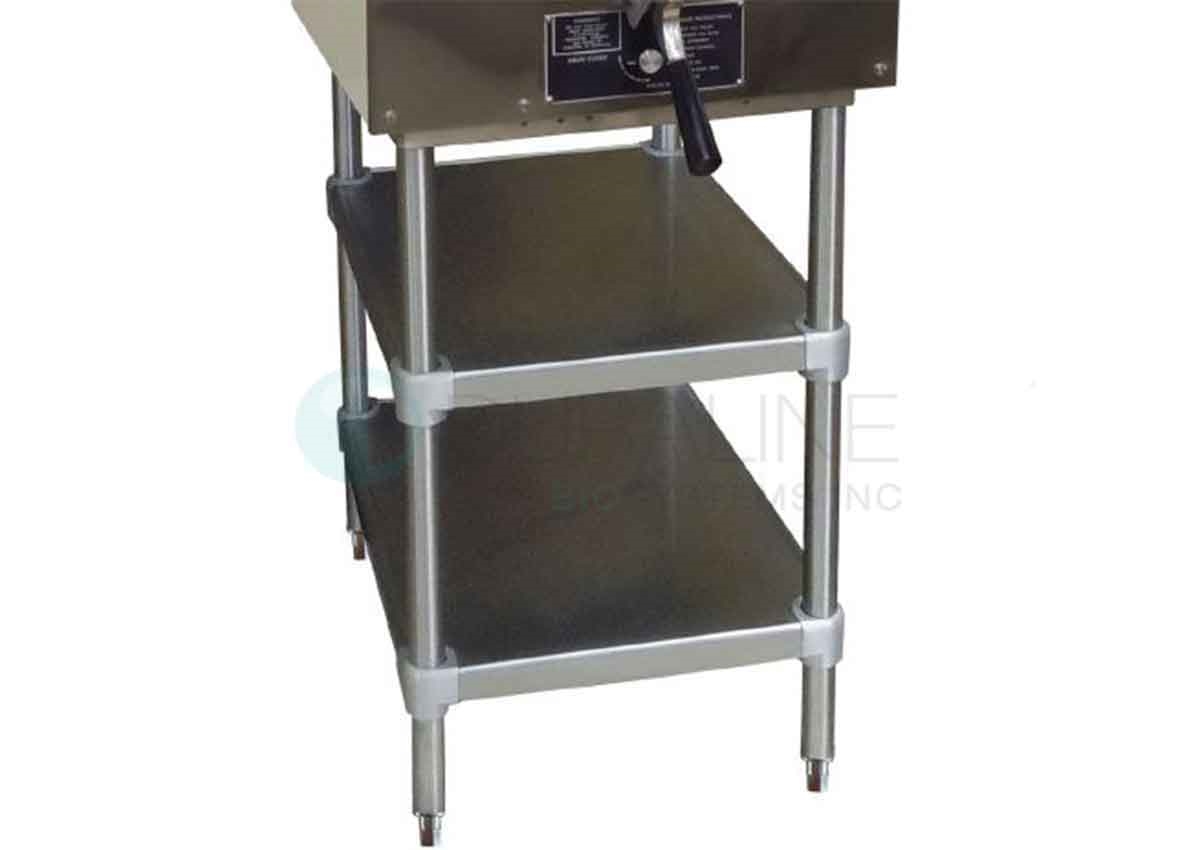

- 18-3/4” wide x 27-5/8” high x 31” deep (55-1/4” high on optional stand)
- All new sterilizers do not include trays
WARRANTY:
All Domestic USA / Territories and Canada: 1 year parts/labor
All other International, including Mexico: 1 year parts only
Technical Specs
- Controls: Manual
- Chamber: 16" x 26"
- Cylinder: 3/16" (4.8mm) thick welded aluminum, which ensures durability and strength.
- Sterilizer exterior: Polished stainless steel.
- Stainless steel is commonly used in medical and laboratory settings because it is resistant to corrosion and easy to clean.
- Dimensions (L x W x H): 31" x 18.75" x 27.6"
- Interior dimensions: Diameter of 16" (406mm) and a length of 26" (660mm)
- cubic content of the cylinder is 5,220 cubic inches (85 liters)
- Door opening of 13-1/2” (343mm) wide and 11” (279mm) high.
- Voltage: 208, or 240 Volts, 60Hz, 1 or 3 phase
- 18-3/4” wide x 27-5/8” high x 31” deep (55-1/4” high on optional stand)
- Sterilizing compartment will have a pan capacity of: Accessories
- (3) 12” x 20” x 2-1/2” (305mm x 508mm x 64mm) or
- (2) 12” x 20” x 4” (305mm x 508mm x 102mm) or
- (1) 12” x 20” x 6” (305mm x 508mm x 152mm)
- Additional information: Detailed specifications
IMPORTANT: All new sterilizers do not include trays; they are sold separately.
|
|
|
