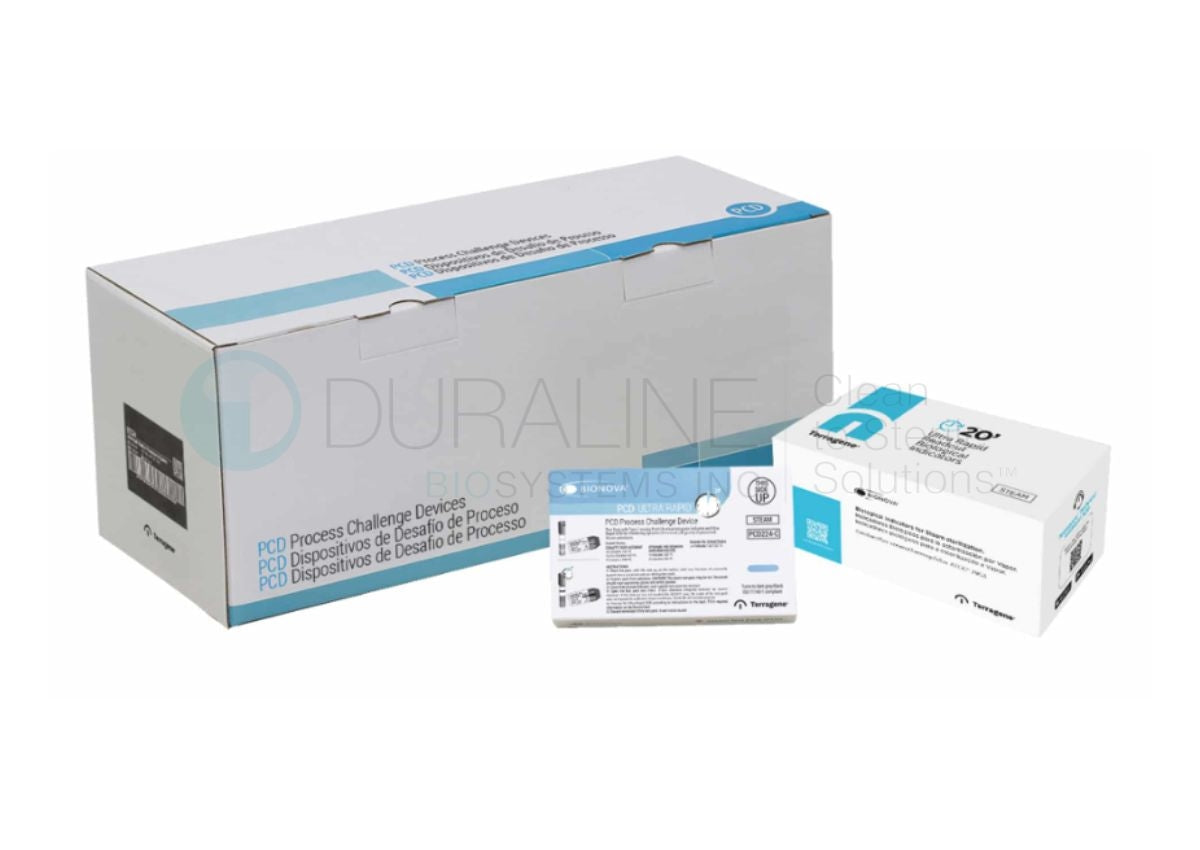

Process Challenge Device with 20 Minute Results, 25/box

Terragene Bionova Process Challenge Device with 20 Minute Results, 25/box
20min Steam Test Pack PCD Kit (with moving front integrator)

OEM: KPCD224-C

Process Challenge Device (PCD) is meticulously designed to offer reliable performance, equipped with
cutting-edge features to guarantee optimal sterilization outcomes.

Features:

• Reliable sterilization assurance for routine load release and implant-containing loads.
• Versatile use for monitoring and validating sterilizers.

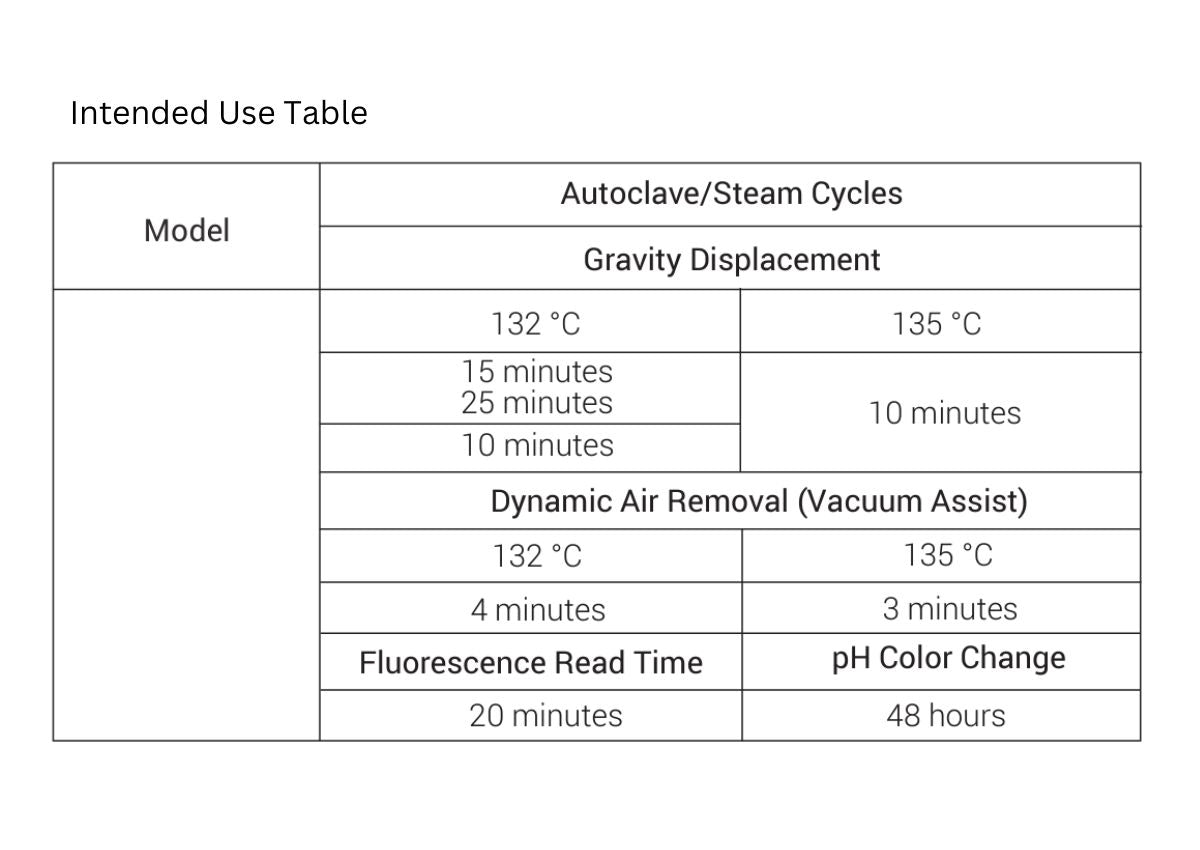

• Detects inadequate air removal and steam penetration in dynamic air-removal (pre-vacuum) and gravity displacement, steam autoclaves operating between 132-135 ºC, ensuring thorough sterilization even in challenging conditions.
• Clear instructions for international use.
• Comprehensive kit includes essential components.
  • A porous cards system holding a Self-contained Biological Indicator, a Type 5 chemical indicator, and a self-adhesive Record Card for convenient documentation.
• Visual process indicators for easy monitoring.
• Manufactured with strict quality standards for safety and reliability.
  • 100% Toxic Heavy Metals free materials, ensuring safety and compliance with rigorous quality standards. Integration conditions are calibrated against established benchmarks, guaranteeing accuracy and reliability.
• Shelf Life: 2 years

Brand	Bionova
Process	Steam
Packaging	Kit with 25 PCDs + 25 SCBIs
Microorganism	Geobacillus stearothermophilus (ATCC® 7953)
Population	10^6 Spores/carrier
Read-Out Time	20 min
Regulations	ANSI/AAMI ST79, ISO 11138-3, ISO 11140-1

Instructions for Use
1. Place the pack inside a normally loaded steam autoclave, in those areas which are considered most inaccessible for the sterilizing agent (e.g., the center of the load and areas near the door).

2. Run the sterilization cycle.

3. After the sterilization process has finished, open the sterilizer door, wait for 5 minutes and remove the test pack.

NOTE: The color of the box may vary from the original after undergoing the sterilization cycle. This does not represent a problem regarding the operation or quality of the product.

4. Check that the process indicator printed on box has changed color from light blue to grey. Open the test pack, wait 5 minutes and remove the SCBI. Allow it to cool down to room temperature.

PRECAUTION: Wear safety glasses and gloves when removing the biological indicator from the sterilized test pack.
WARNING: Do not crush or handle the biological indicator excessively, since this might cause the glass ampoule to burst.

5. Check the chemical integrator on the record card for correct exposure. Color change to green confirms that the inside of the pack has been exposed to correct sterilization conditions.

6. Check the process indicator printed on SCBI ´s label. A color change to brown confirms that the biological indicator has been exposed to steam.

IMPORTANT: This color change does not indicate that the process was sufficient to achieve sterility.

7. Identify the Bionova® BT224 SCBI by writing the sterilizer number (in case of having more than one), load number, and processing date on the label.
Fill out the required information on the Record Card.

8. Press the cap to seal the tube. Crush the glass ampoule contained in the SCBI with an individual ampoule crusher or with the ampoule crusher placed within the incubator s incubation area. Then shake the tube down vigorously, with movements similar to those performed to lower the temperature in a mercury thermometer, until the medium reaches the base of the tube and soaks the spore carrier entirely.

IMPORTANT: Use a non-sterilized biological indicator as a positive control in order to ensure that correct incubation conditions were met; capability of culture medium to promote rapid growth; no alteration of spore’s viability due to improper storage temperature, humidity or proximity to chemicals and also correct functioning of Terragene® Bionova® Auto-reader Incubator. Both, the positive control indicator and the processed indicator, should belong to the same batch.

9.Incubate the processed biological indicator and the indicator used as positive control in Terragene Bionova® Auto-reader Incubators for 20 minutes at (60 ± 2) °C to get the final fluorescence result. A 48-hour readout is optional to confirm the 20-minute result by visual color change. A positive fluorescence result (or culture medium color change after the 48-hour incubation) means failure of sterilization process. If a negative fluorescence result is obtained (or culture medium remains the original color after 48-hour incubation), it means that sterilization process was successful.

10.Record the SCBI and integrator results and adhere the self-adhesive Record Card or, alternatively, only the area containing the integrator indicator.

11.Discard the pack and the indicators immediately.

Precautions
WARNING: Do not use PCD for monitoring Ethylene Oxide, Dry Heat, Formaldehyde or any sterilization process other than Steam. Do not reuse biological indicators.
WARNING: Place one or more PCDs in sterilizing hard-to-reach areas to ensure all areas of the chamber are sterilized. Evaluate all load configurations to ensure all hard-to-reach areas have been identified, and place a PCD in each of those locations. WARNING: Do not reuse the sterilizer until the biological indicator test result is negative.
