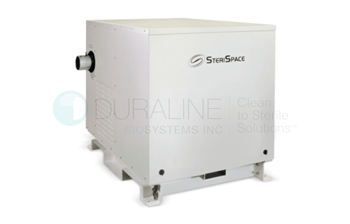

SteriSpace Air & Chemical Sterilization Technology
SteriSpace Air Sterilization Technology is a patented, turnkey system engineered for healthcare, industrial, and government applications. Its compressive-heating technology inactivates airborne pathogens—including viruses, bacterial spores, and mold—achieving lab-tested kill rates exceeding 99.9999%. Units are scalable to treat airflows from tens to thousands of CFM and can integrate with HVAC systems or operate standalone. Optional chemical catalyst modules reduce VOCs and pollutants (manufacturer-reported). Positive or negative pressure configurations, rapid setup, minimal consumables, and mobility make SteriSpace a safe, efficient, and flexible solution that enhances biosafety, biosecurity, and operational efficiency.
Key Features:  Patented compressive-heating air sterilization technology Airborne pathogen kill rate >99.9999% (lab-tested) Eliminates pathogens smaller than 0.3 microns, surpassing HEPA filtration Optional chemical catalyst for VOC and environmental pollutant removal (manufacturer-reported) Scalable for hundreds to thousands of CFM airflow Standalone, HVAC-integrated, mobile, or tent deployment Positive or negative pressure configuration options Fully insulated, quiet, energy-efficient, low-maintenance operation Eliminates biohazard exposure risk to workers
Technical Specifications – SteriSpace Advanced Air Sterilization Device
| Specification | Details |
|---|
| Model Number | SteriSpace SS Model line | | Applications | Air sterilization; standalone or integrated with new/existing HVAC systems | | Pathogen Kill Rate | >99.9999% (lab-tested), log 6 reduction | | Compressive Heat Magnitude | Up to 464 °F (240 °C) | | Airflow Capacity | 100–10,000 CFM | | Dimensions (L×W×H) | Variable based on model/capacity | | Weight | Variable | | Power Requirements | 3 Phase or 1 Phase, 60 Hz, 208–240 VAC or 440–480 VAC | | Noise Level | Typically <75 dB | | Included Items | Electric service disconnect, mechanical flanged connections, finger-safe cable assemblies on mobile/shelter systems | | Deployment Options | Standalone, HVAC-integrated, mobile, tent/shelter, positive/negative room pressure capable | | Maintenance | Annual lubrication only; no filters required | | Certifications | Not specified by MFR (verification needed) |
Technical Specifications – SteriSpace Electric Recuperative Catalytic Thermal Oxidizer (CATOX)
| Specification | Details |
|---|
| Model Number | SteriSpace CC Model line | | Applications | Ethylene Oxide (EtO) and Propylene Oxide (PPO) abatement systems; process and fugitive fumes abatement | | EtO/PPO Reduction | EtO reduced to 5 PPB residual; PPO to 10 PPB residual | | Compressive Heat Magnitude | As required for total destruction | | Airflow Capacity | 100–5,000 CFM | | Dimensions (L×W×H) | Variable based on model/capacity | | Weight | Variable | | Power Requirements | 3 Phase or 1 Phase, 60 Hz, 208–240 VAC or 440–480 VAC | | Noise Level | Typically <75 dB | | Included Items | Electric service disconnect, mechanical flanged connections | | Deployment Options | Integrates with Water Balancer/Peak Shaver, Wet or Dry Scrubbers | | Maintenance | Catalyst change every 5 years; annual lubrication required; no filters used | | Certifications | Not specified by MFR (verification needed) |
Coming Soon
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
Q: What is the measured or expected EO (or PPO) concentration at the source?
-
A. Provide concentration in ppm (parts per million). Indicate whether this is peak, typical, or maximum design concentration.
- Why: Determines required dilution, safety measures for flammability (LEL), and CATOX sizing.
Q: What is the volumetric flow rate of the EO/air stream to be abated? (CFM)
-
A. Give the flow in CFM at the stated concentration and indicate temperature/pressure if non-standard.
- Why: Critical for selecting unit model and catalyst sizing.
Q: What is the LEL (lower explosive limit) safety target or operating practice for the process?
-
A. State the %LEL or ppm threshold you will maintain (e.g., keep below ¼ LEL / 7,000 ppm for small-room sterilizers).
- Why: Impacts required dilution strategy, use of air injection or water balancer, and safe transport to thermal oxidizer.
Q. What are the inlet and exhaust duct/piping sizes and connection details?
-
A. Specify diameter (inches), material, flange type, and required insertion depth or transition pieces. Include inlet/outlet orientation.
- Why: Ensures mechanical fit, reduces pressure-drop surprises, and confirms exhaust stack compatibility.
Q: What are the physical installation conditions and delivery logistics?
-
A. Where will the unit be located (outside ground level, rooftop, inside mechanical room, mobile trailer)? Provide delivery address, dock availability, and any site access restrictions.
- Why: Defines shipping method, crane/rigging needs, and onsite installation plan.
Q: How far is the abator mounting point from the fume collection/point source?
- A. Give straight-line distance and duct run length (feet), number of bends, and any elevation changes.
- Why: Affects fan sizing, pressure requirements, and ductwork design.
Q: What electrical service is available on site?
- A. Confirm 3-phase or single-phase, voltage (208/230 V or 460/480 V), frequency (60 Hz), and available ampacity at the installation point. Note if disconnects are provided.
- Why: Determines power configuration, transformer needs, and whether a site electrical upgrade is required.
Q: What are the room or facility dimensions and ventilation context?
- A. For fugitive fume abatement: provide room L×W×H, occupancy, and typical ventilation (ACH) or existing HVAC integration points.
- Why: Needed when sizing units for ambient gassing scenarios and determining how much air must be treated
Q: What ancillary abatement or pretreatment equipment is present or planned?
- A. List any scrubbers, water balancer (bubbler), acid scrubber, HEPA, peak shaver, or wet/dry scrubbers your site uses or will use upstream/downstream.
- Why: Helps specify integration points and whether the CATOX should be used standalone or in series with pretreatment.
Q: What operational, maintenance, and regulatory constraints apply?
- A. Provide expected runtime (hours/day), required maintenance window, local emissions/permitting limits, and any certification needs. Also indicate whether remote monitoring or alarm integration is required.
- Why: Influences catalyst selection (life expectancy), maintenance schedule, permitting assistance, and control/interface features.
|
|
|
|
|
|
|
