New W&H Lexa Plus delivers fast Class B sterilization with Eco Dry+ technology, advanced traceability, automatic water filling, and a high-capacity 28-liter chamber for efficient instrument reprocessing.
Product Code: NLexa-Plus

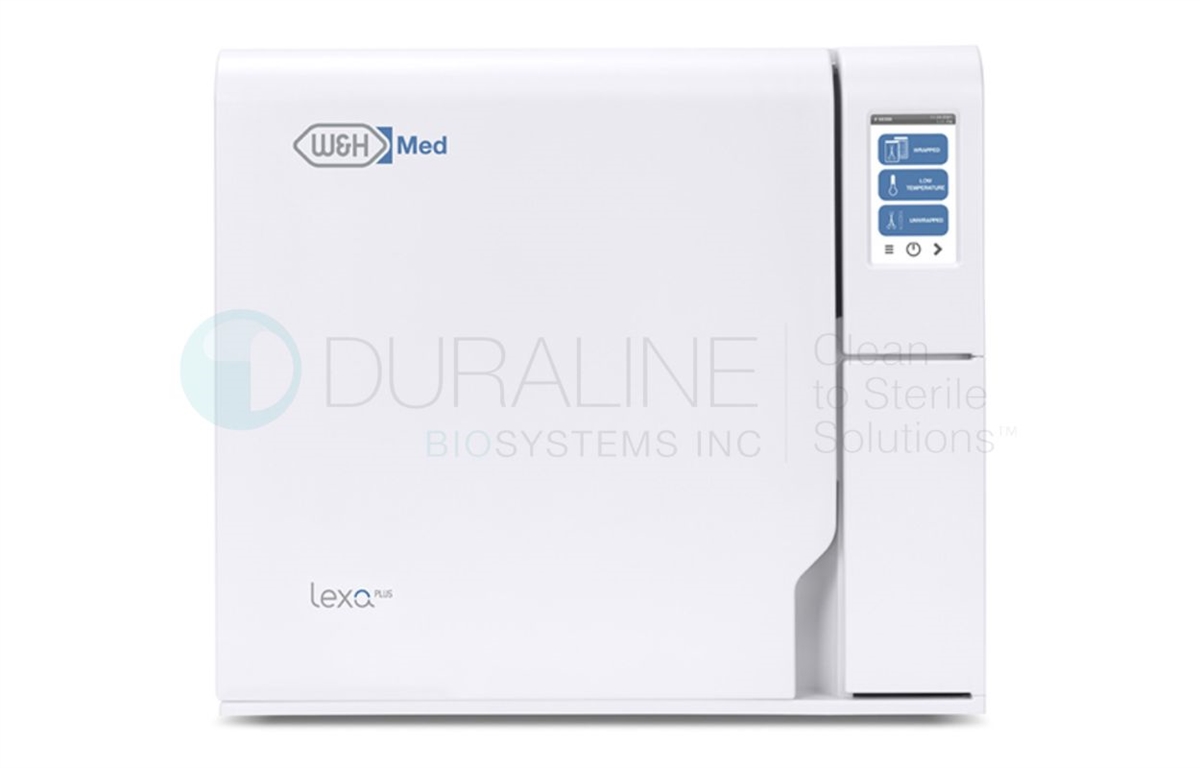

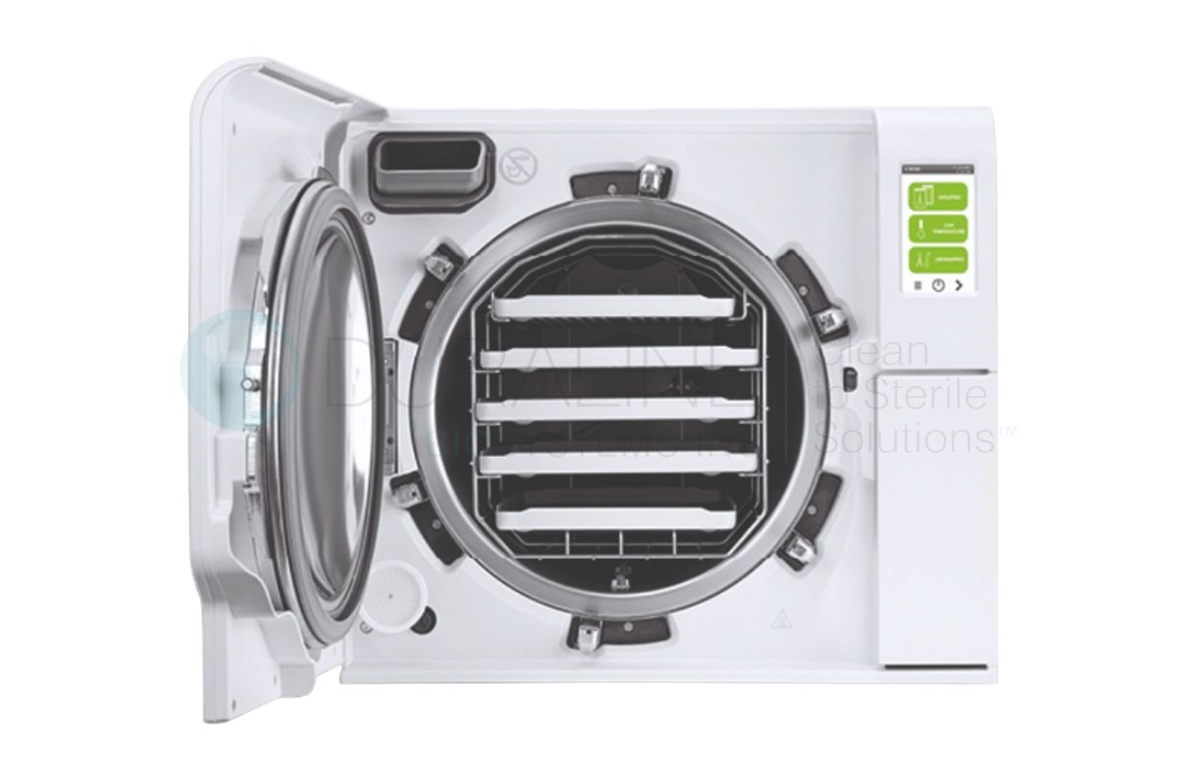

The W&H Lexa Plus Sterilizer is designed to enhance infection control workflows with increased chamber capacity, advanced traceability, and energy-efficient sterilization cycles. Featuring patented Eco Dry+ technology, the system automatically adjusts drying times based on load mass to reduce cycle duration, extend instrument life, and optimize energy consumption. The 28-liter chamber accommodates up to five trays and supports a variety of load types through versatile Class B vacuum sterilization programs. Advanced connectivity, automatic water filling, EliTrace documentation, and closed-door HEPA-filter drying help simplify compliance and daily operation.
Key Features
- Class B dynamic air removal vacuum sterilizer
- Large 28-liter (7.4 gallon) chamber capacity
- Eco Dry+ patented adaptive drying technology
- Processes wrapped loads in less than 40 minutes (typical 4.5 lb load)
- Automatic water filling system compatible with demineralized water systems
- Closed-door drying with integrated HEPA filtration
- EliTrace advanced traceability system
- W&H Med Steri App support for remote monitoring and cycle backup
- Ethernet connectivity with optional Wi-Fi capability

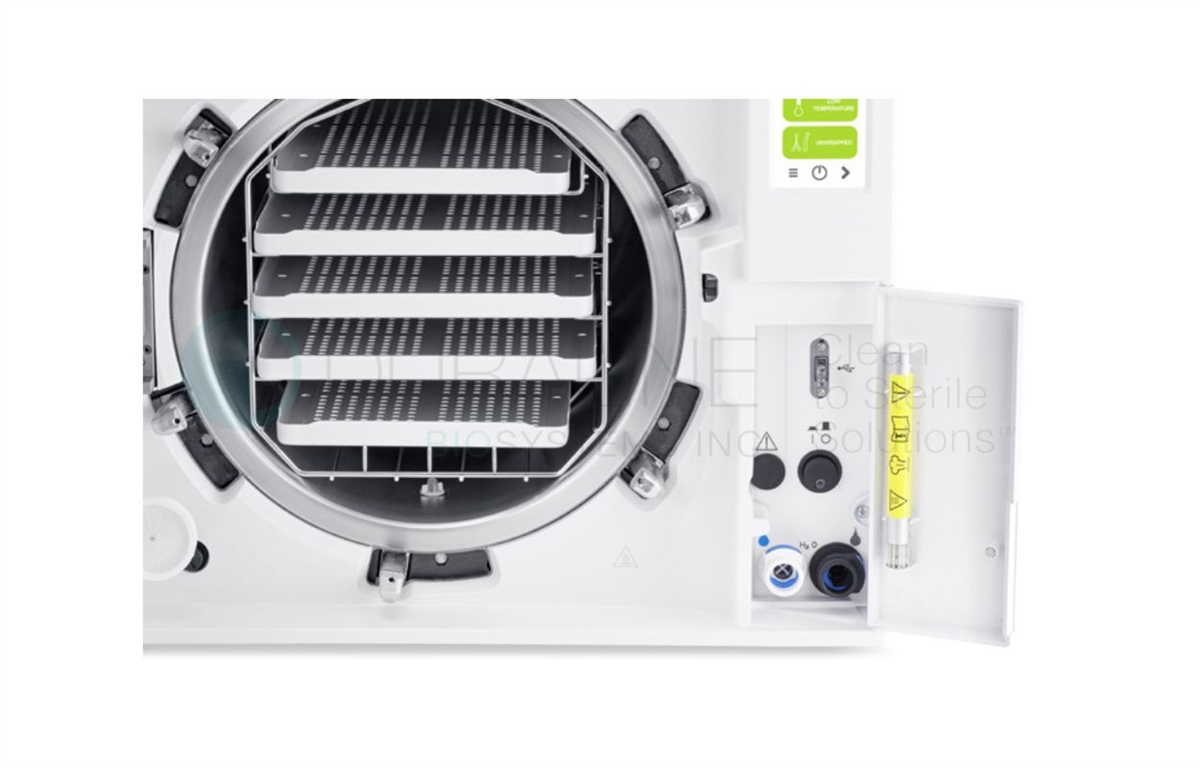

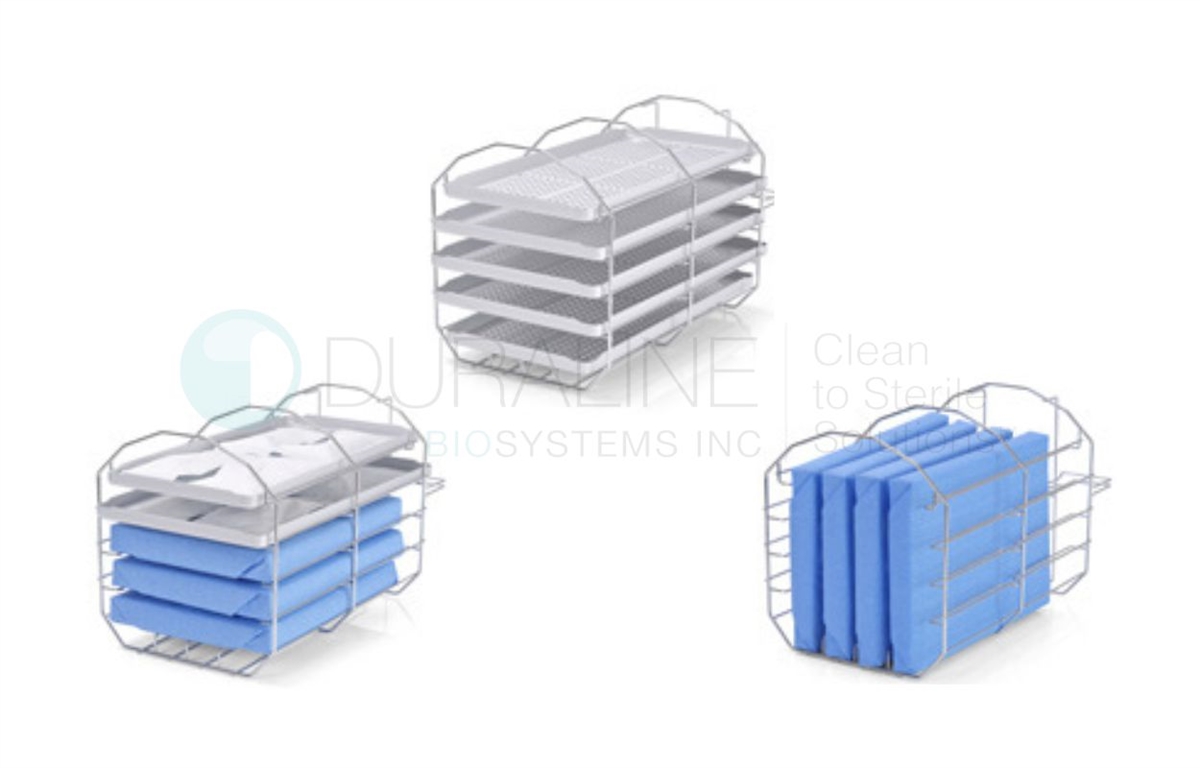

- Five-tray rack system for increased loading flexibility
- Automatic cycle documentation via USB storage
- Intuitive 4.3-inch color touchscreen display
Included with the W&H Lexa Plus are a standard rack system, five aluminum trays, tray holder, drain hose, 8 GB USB drive for cycle documentation, door opening tool, and factory test documentation, providing everything needed for immediate installation and operation.
WARRANTY: 12 months Parts
| Specification | Value |
|---|
| Trade Name | Lexa Plus | | Type | RIS-311 | | Chamber Capacity | 7.4 gal (28 liters) | | Chamber Usable Space | 9" x 9" x 17.3" | | Power Supply | 200–240 VAC, 50/60 Hz, 10A Single Phase | | Power Consumption | 2.0–2.4 kW | | Overall Dimensions | 19.3" W x 17.9" H x 24.4" D | | Weight | 119 lbs (54 kg) | | Water Tank Capacity | Fresh 1.27 gal / Used 1.35 gal | | Connectivity | 5 USB Ports, Ethernet (LAN), Auto Water Fill Kit | | Included Accessories | Rack, 5 Aluminum Trays, Drain Hose, Tray Holder, 8GB USB Stick, Door Opening Tool |
| Cycle | Temperature | Sterilization Time |
|---|
| Wrapped | 270°F (132°C) | 4 Minutes | | Low Temperature | 250°F (121°C) | 30 Minutes | | Unwrapped | 270°F (132°C) | 4 Minutes |
Lexa Plus Sterilizer comes complete with: - Lexa Plus Sterilizer
- Standard Rack System
- Five (5) Aluminum Instrument Trays
- Tray Holder
- Drain Hose
- 8 GB USB Storage Device
- Door Opening Tool
- Factory Test Documentation
Coming Soon
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
Q: What makes the W&H Lexa Plus different from a standard tabletop sterilizer?
A: The Lexa Plus combines a large 28-liter chamber, patented Eco Dry+ adaptive drying technology, automatic water filling, advanced EliTrace documentation, and remote connectivity to help improve efficiency and sterilization workflow management.
Q: How fast are Lexa Plus sterilization cycles?
A: Cycle times vary by load type. Typical unwrapped cycles complete in approximately 24 minutes, while a wrapped load of approximately 4.5 lbs can be processed and dried in less than 40 minutes. Eco Dry+ technology automatically adjusts drying times based on load mass.
Q: What is the chamber capacity of the Lexa Plus?
A: The Lexa Plus features a 28-liter (7.4-gallon) chamber and can accommodate up to 18 lbs of unwrapped instruments or up to 16.5 lbs of wrapped and unwrapped cassettes and instruments. The unit includes five aluminum trays and a high-capacity rack system.
Q: Does the Lexa Plus support sterilization recordkeeping and traceability?
A: Yes, The Lexa Plus includes advanced traceability capabilities through EliTrace. Cycle documentation can be automatically saved to the included USB drive, while Ethernet connectivity and optional accessories provide additional reporting and tracking capabilities.
Q: Does the Lexa Plus require manual water filling?
A: No. The Lexa Plus features an automatic water filling valve that can be connected to a demineralized water system, helping reduce manual maintenance. A front-mounted integrated funnel also allows manual filling when needed
Q: How does Eco Dry+ technology benefit instrument processing?
A: Eco Dry+ automatically adjusts drying time according to the load size, helping reduce cycle times, lower energy consumption, and minimize unnecessary heat exposure that can contribute to instrument wear.
Q: What types of loads can the Lexa Plus sterilize?
A: The Lexa Plus offers versatile Class B sterilization cycles for wrapped instruments, unwrapped instruments, cassettes, pouched items, and textile loads, making it suitable for a wide range of clinical sterilization needs
Q: Is the Lexa Plus compliant with recognized sterilization standards?
A: Yes. The Lexa Plus is designed and validated to comply with major international sterilization, safety, and performance standards, including EN 13060, ANSI/AAMI ST55, EN ISO 17665-1 validation requirements, UL 61010-1, and CSA standards.
|
|
|
|
|
|
|
