Instrument Washer Disinfector Steelco DS 500 DRS

Availability: Not available for sale in USA
Product Code: DS500DRS

Request Quote

Description

Technical Specs

Literature

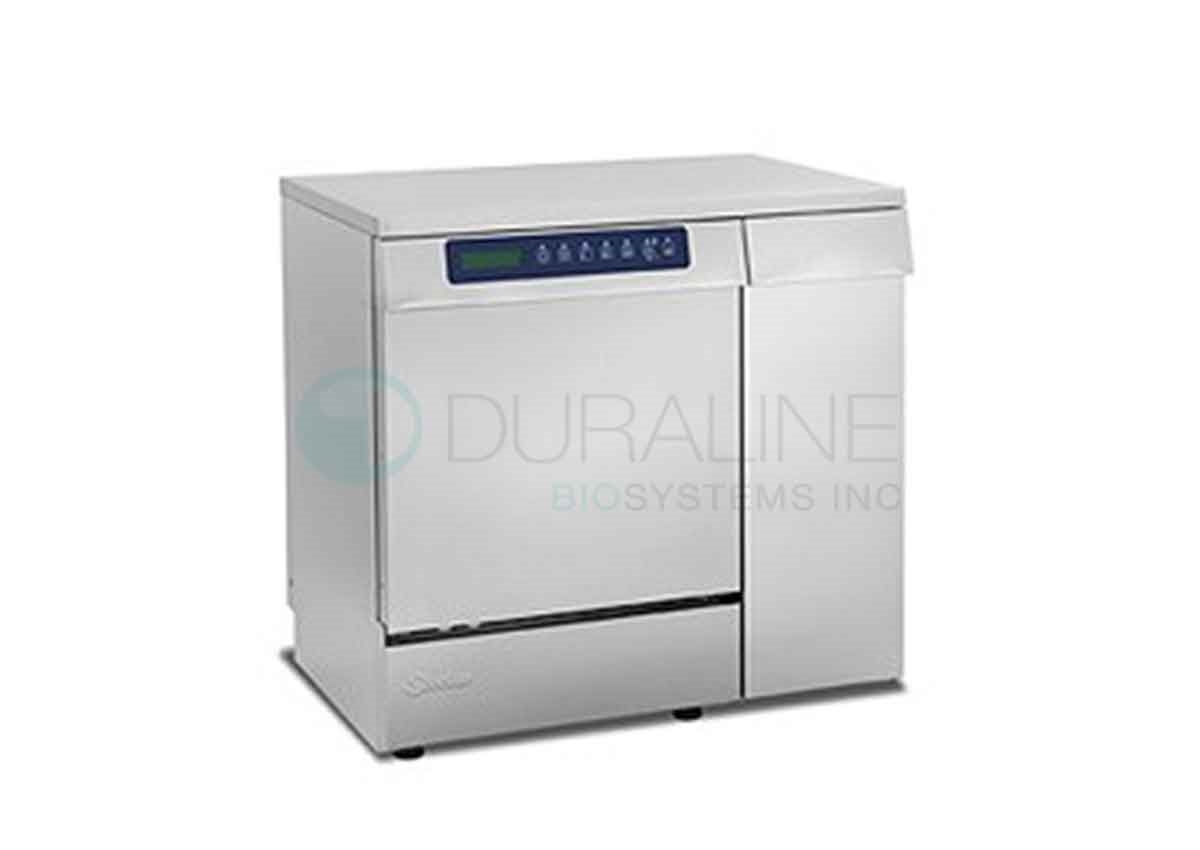

DS 500 DRS Underbench Washer Disinfector with forced hot air drying by Steelco

90 cm width under counter washer disinfector with a powerful built-in HEPA filtered forced air drying.

Washing injection system, hot air drying and liquid detergent container built into the machine, are the main features of this model. Heavy washing pump ensures high flow rate combined with effective spray pressure.

Filtered forced air drying system with adjustable time and temperature setting, helps to ensure completely dry, inside and outside, of all the surgical instruments and tubes.

The lateral compartment allows easy operator and maintenance access to the HEPA filtered drying system and to the chemical dosing system. It can also store up to four 5lt / 1.32 Gal US chemical containers.

LCD display control panel with 40 washing and thermodisinfection programs for surgical instruments: 20 standard pre-programmed cycles and 20 additional, available for customization.

Features:

Heavy washing pump to ensure high water flow rate combined with effective spray pressure.
Filtered forced air drying system with adjustable time and temperature setting, helps to ensure a complete drying, inside and outside, of all the surgical instruments and tubes.
Washing and DI disinfection temperature are fully adjustable up to 93°C. Temperature is monitored by two independent sensors.
Standard steam condenser prevents vapors from entering into the washing area.
Inner cabinet, washing arms and tank filters made of high quality AISI 316 L stainless steel.
Two automatic liquid dispensers.
Triple water filtering system captures residue, preventing re-circulation and extending the pump life.

Optional:

3rd and 4th Chemical dosing pumps
HEPA H14 air filter
Stand
Boiler to pre-heat DI water (stand required)
Extra power 8 KW to reduce cycle time
Front panel integrated printer ST2
Glass window door
Built in water softener

DS 500 DRS can be integrated into existing furniture of treatment rooms, and also with functional ergonomic stands.

Stands improve ergonomics when machine is not installed under counter. The 600mm/23.62” height stands are equipped with doors for easy storage access to chemicals and accessories. Stand is recommended in case the machine is equipped with the option of boiler to pre heat DI water and the needed booster pump. The 300mm/11.81” height stand is just a support and can’t be used as a container.

Stand for DS 500 DRS:
9991015 mm. 900 x 560 x 600h / 35.43” x 22.05” x 23.62”h
9991146 mm. 900 x 560 x 300h / 35.43”x 22.05” x 11.81”h

How to Combine Optionals choosing the Right Configuration:
