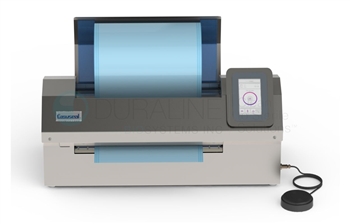

EasySeal Automatic 5" LCD Touchscreen Heat Sealer w/Built-In Cutter, 10mm Seal width

Technical Specifications

Control System:

• 5-inch color LCD touchscreen with capacitive technology for user-friendly operation.

Cutting Parameters:

• Cutting Width: Up to 500 mm; supports simultaneous cutting of multiple rolls.
• Cutting Length: Minimum length of 80 mm.
• Cutting Accuracy: Within 1% deviation.
• Cutting Speed: 3 seconds per cut (based on an 80 mm cutting length).

Sealing Parameters:

• Sealing Width: 10 mm.
• Sealing Speed: Up to 7 seals per minute (8 seconds per seal).
• Combined Cutting and Sealing Capacity: 13 sheets per minute (with a seal time of 2 seconds and cutting length of 80 mm).

Temperature and Control:

• Adjustable Working Temperature: 60°C to 220°C.
• Temperature Accuracy: Within 1%.

Environmental Requirements:

• Operating Temperature Range: 10°C to 40°C.
• Operating Humidity: 20% to 80% relative humidity.

Power and Electrical Specifications:

• Power Supply: AC 1150V ±10%, 50Hz.
• Power Consumption: 600 watts.
• Maximum Current: 3.2 amps.
• Fuse Rating: 5A × 2.

Dimensions and Weight:

• Machine Dimensions: 770 mm (L) × 350 mm (W) × 320 mm (H).
• Weight: 68.3 lbs.

Storage Conditions:

• Storage Temperature: 0°C to 55°C.
• Storage Humidity: Up to 90% relative humidity.
• Atmospheric Pressure Range: 50 kPa to 106 kPa.
